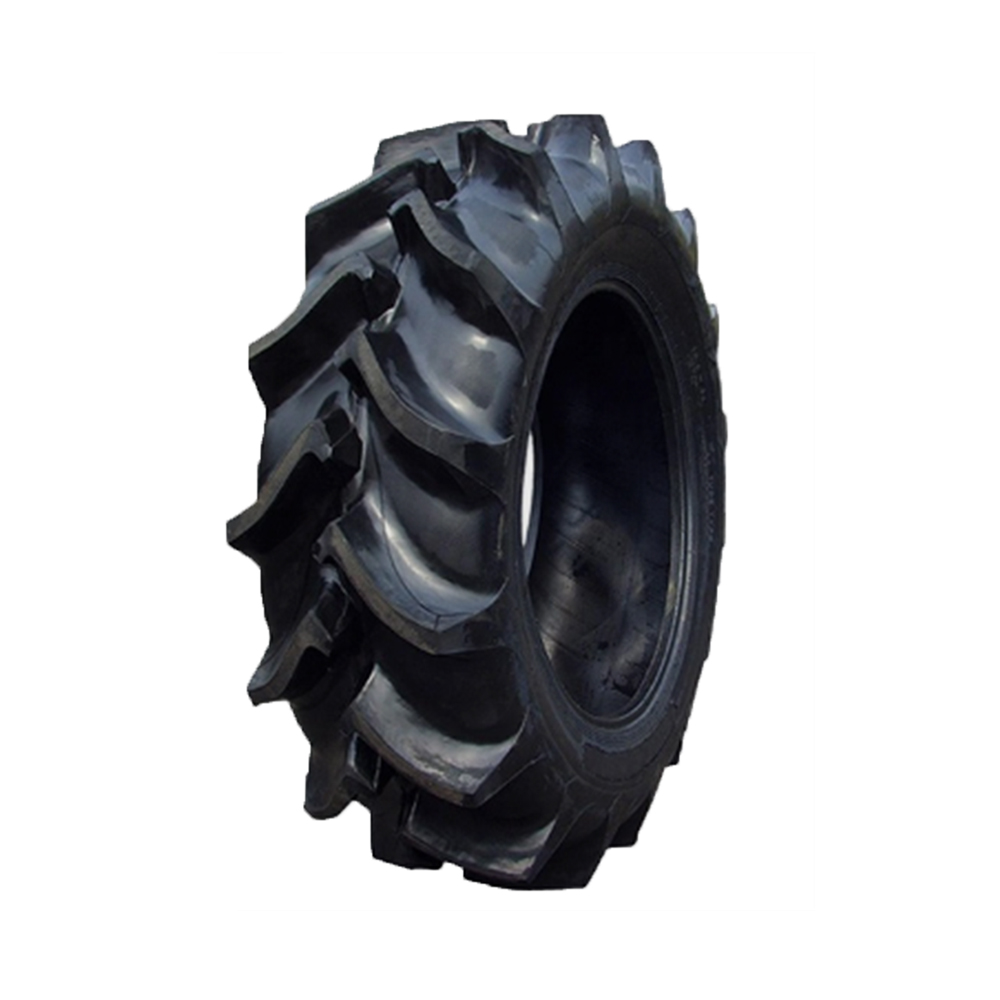

AG100 R-1W Radial Tractor Tires

The Forlander AG100 R1W tire is a high-performance agricultural tyre with a steel belt and optimized tread for superior traction and durability. Its self-cleaning grooves and wide footprint reduce slippage and soil compaction, available in 12 sizes including 320 85R24 tractor tires and 460 85R38 tractor tire.

Additional information

Brand

Construction Type

Radial

Available Sizes

, , , , , , , , , ,

Tire Features – Forlander AG100 R-1W Radial Tractor Tires

1. Narrow self-cleaning tread for row crops
Specially designed narrow grooves provide excellent self-cleaning performance, preventing mud buildup and maintaining traction in row crop applications.

2. Optimized contact pattern for less compaction
Specially engineered lug blocks create an ideal contact area under low pressure, effectively minimizing soil compaction while preserving field performance.

3. Reinforced lug depth for reliable grip
Deeper tread pattern ensures consistent, reliable grip in loose soil conditions, keeping equipment moving through challenging field terrain.

Tire Parameters

SIZE LOAD INDEX PATTERN CODE STANDARO RIM TREAD DEPTH MM OVERALL DIAMETER MM SECTION WIDTH MM RELEVANT PRESSURE KPA MAX LOADING  KG
320/85R24 122 A8 R-1W W10 43.5 1154 319 160 1500
380/85R28 133 A8 R-1W W13 46 1357 380 160 2060
420/85R28 139 A8 R-1W DW15L 48 1425 429 160 2430
420/85R34 142 A8 R-1W DW15L 48 1578 429 160 2650
460/85R34 147 A8 R-1W DW16L 49 1646 455 160 3075
480/70R30 141 D R-1W W15L 46 1478 479 160 2575
520/85R42 157 A8 R-1W DW16L 51 1951 528 160 4125
520/85R42 162 A8 R-1W DW16L 51 1951 528 240 4750
620/70R42 160D R-1W DW20B 51 1935 625 160 4500
460/85R38 149 A8 R-1W DW16L 49 1747 455 160 3250
480/70R34 143 D R-1W W15L 46 1580 479 160 2725
710/70R38 166 D R-1W DW23B 55 1959 716 160 5300
