| Brand | |
|---|---|
| Load Capacity | Standard， Load rate≦130% |
| Available Sizes |
1. Mining Dump Truck Design

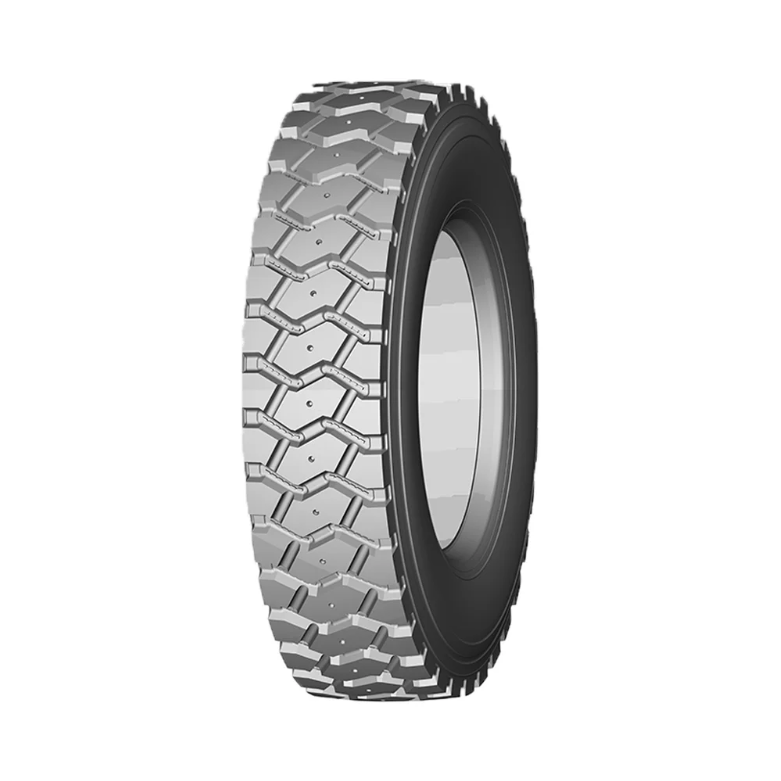

The FD628 commercial off road tires is specifically designed for mining dump truck tires on mixed use, with a standard load rate ≤130% for reliable heavy-duty performance.
2. Excellent Traction & Irregular Wear Resistance
Innovative tread design and compounds promote excellent traction and resist irregular wear, extending tire life in demanding mining conditions.
3. Good Drainage & Steering Performance
Special transverse grooves enable the tire to have good drainage and steering performance, enhancing safety and control on wet and mixed surfaces.
4. Maximum Tread Life
Deep original tread depth provides maximum tread life, reducing replacement frequency and lowering operating costs for short to medium distance mixed roads.
| Size | PR | Standard | Load | Speed Rating | Section width(mm) | O.D(mm) | Tread Depth(mm) | Load Capacity | TREAD Width(mm) | |
| Rim | index | Single | Dual | |||||||
| 235/75R17.5 | 18 | 6.75 | 143/141 | J | 233 | 797 | 15.0 | 2725 | 2575 | 190 |
